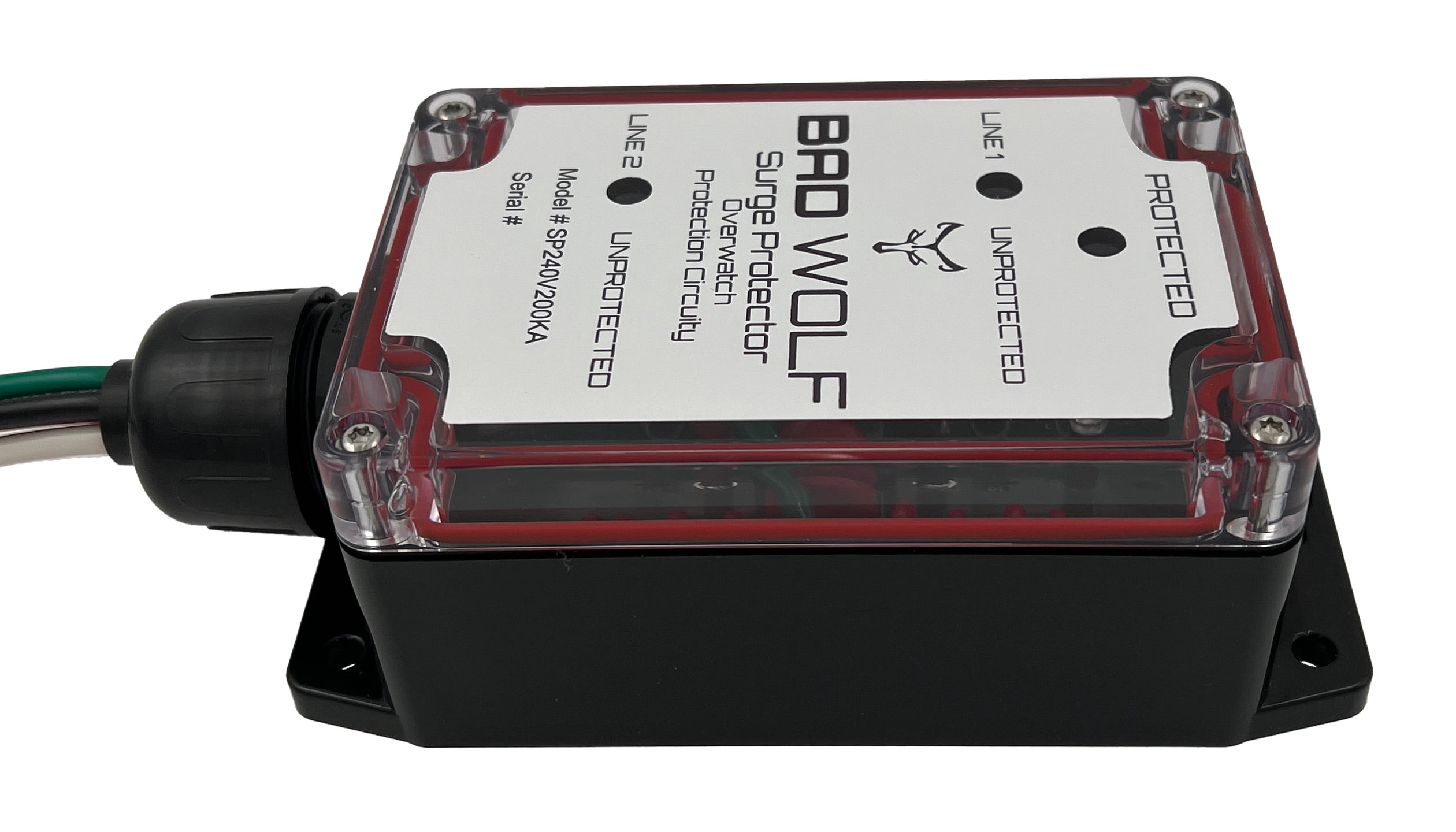

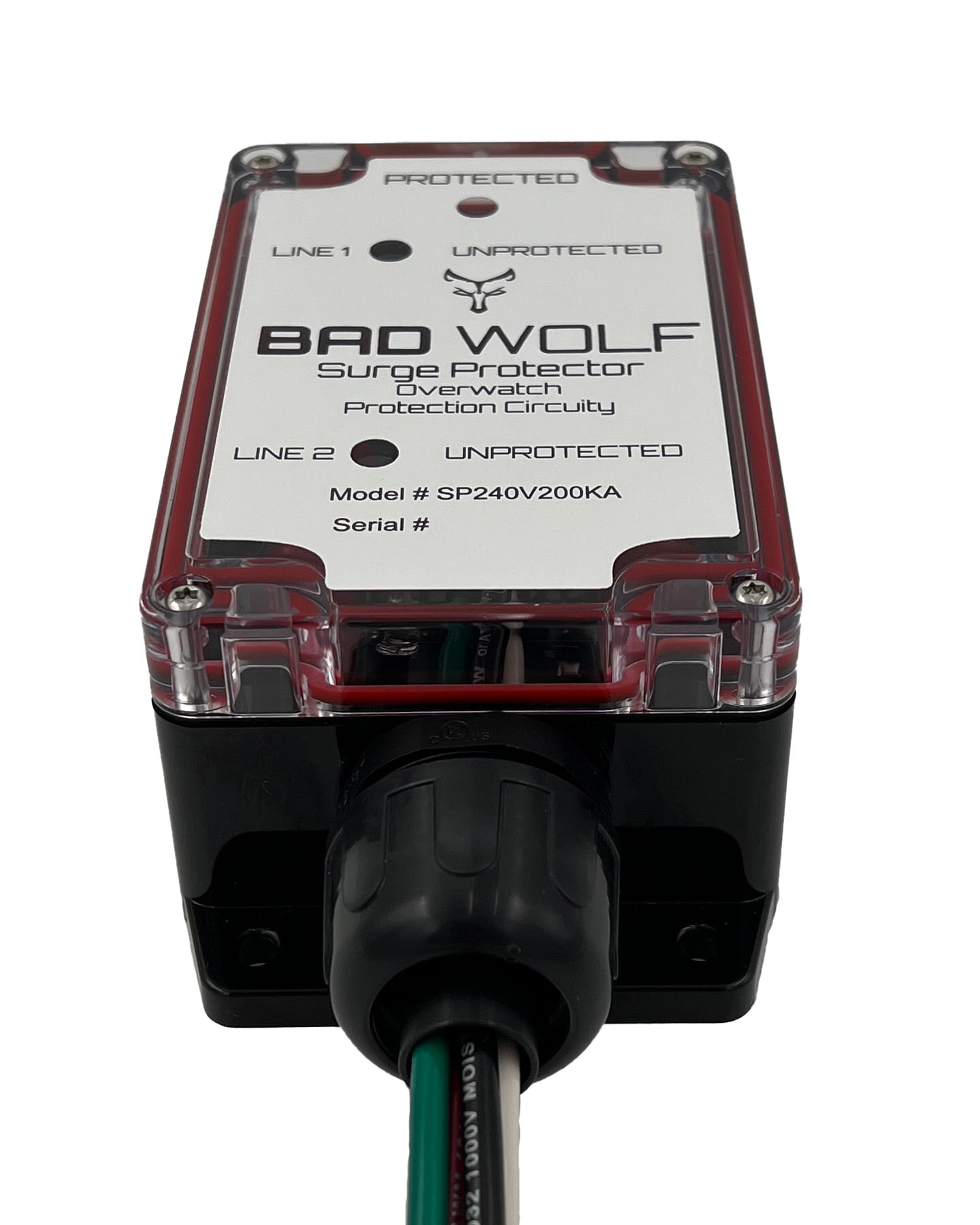

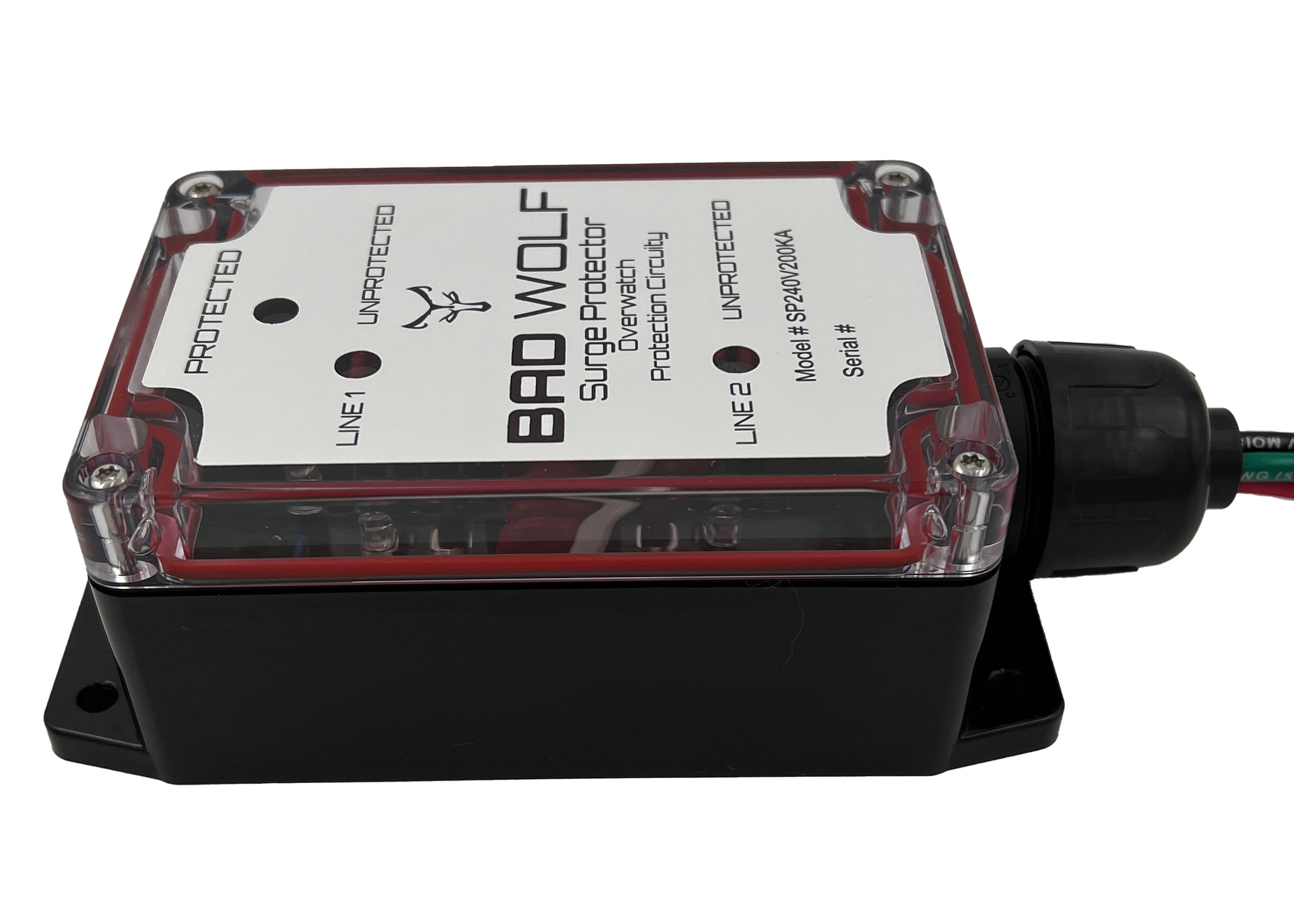

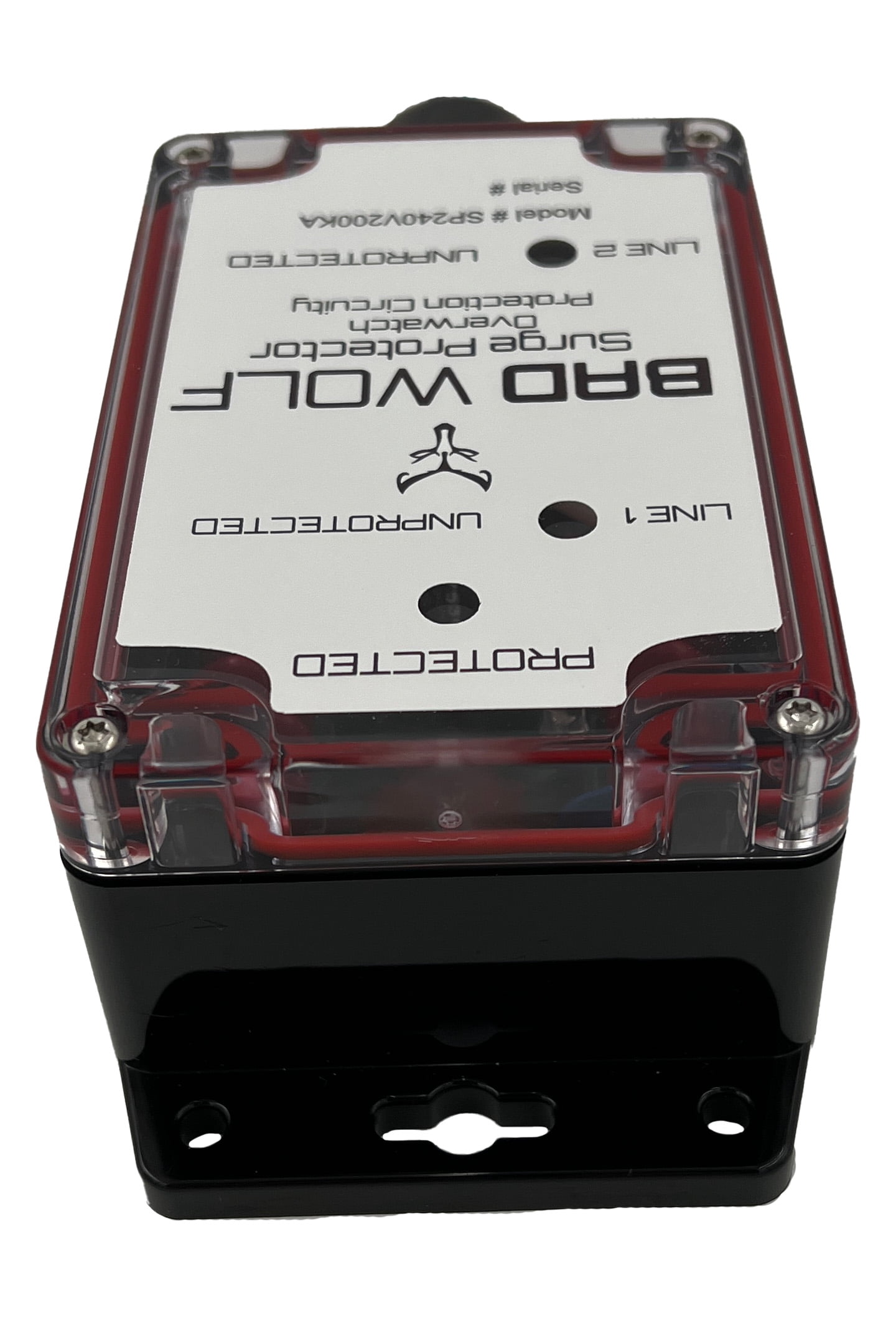

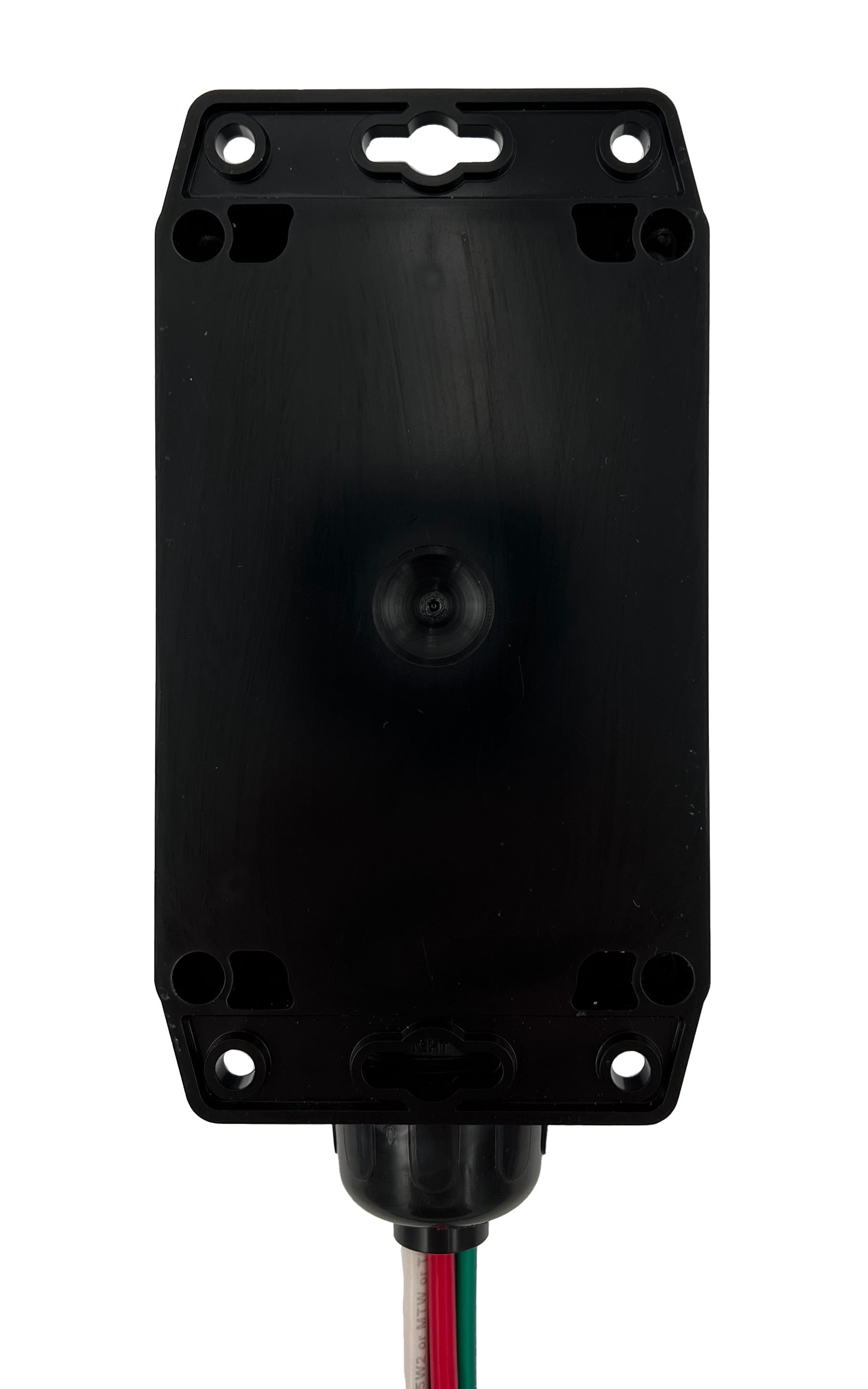

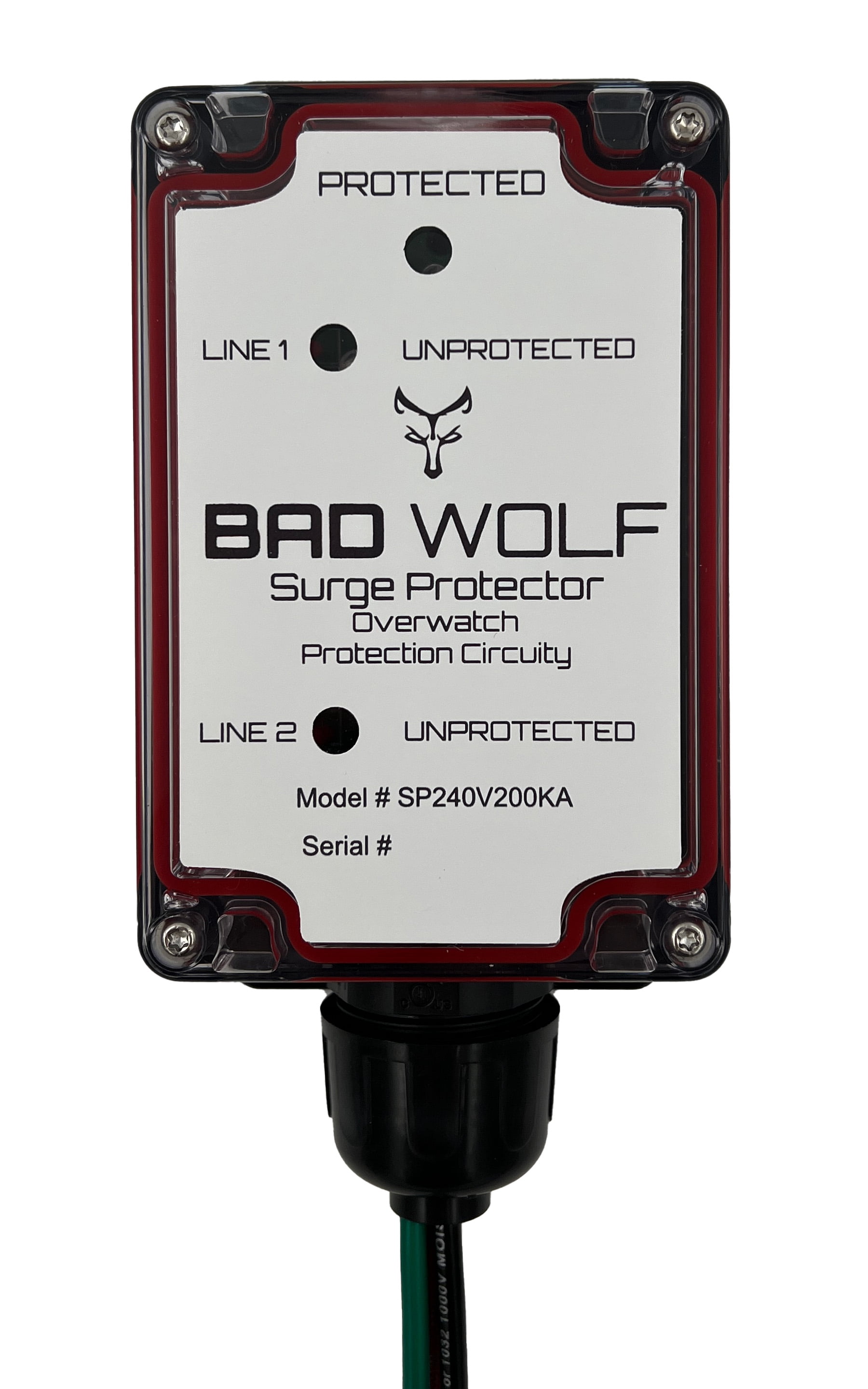

Surge Protector 240V at 200kA with Overwatch Protection Circuitry

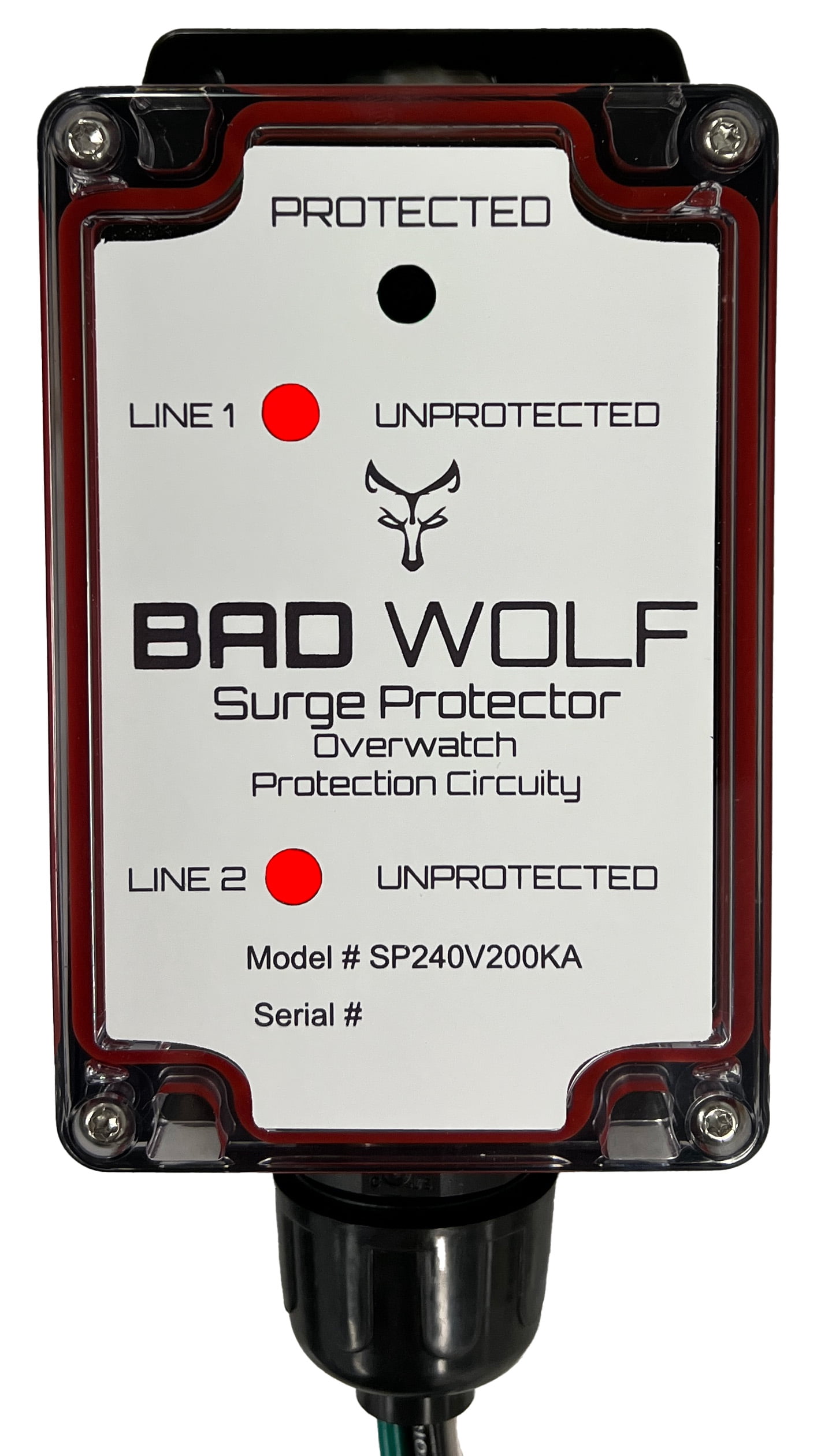

• • Visual Status Indicator Lights (Green = Protected), (Line 1 Red = Line 1 Unprotected), (Line 2 Red = Line 2 Unprotected)
  • 6 Modes of Protection (L1 – L2), (L1 – N), (L2 – N), (L1- G), (L2 – G), (N- G)
  • Vpr (L-L 300V) (L-N 150V) (N-G 50V)
  • Provides 200,000 Amps of surge current capacity per phase
  • Nema 3R Enclosure per Nema/UL requirements with 4X indoor / outdoor rating
  • Can be used as a type 1 or 2 SPD (If installing on load center use in conjunction with a 20A 2 pole circuit breaker

• Bad Wolf AC surge protection device SPD provides overvoltage protection. Built using our patented Overwatch protection circuitry that provides ultra-fast surge response and easy to read status indication.


  240V Whole House Surge Protection

  Bad Wolf Whole House Surge Protection Devices (SPDs) are installed in the main breaker panel of your residence providing for surge protection for all circuits connected. A green LED indicator shows you that the surge protector is providing protection for all the connected circuits, while two red LED indicators alert you of a failure on either of the line connections. The Bad Wolf Whole Home Surge Protection Device is designed for normal Line to Line voltages of 240VAC and Line the Neutral voltages of 120VAC. The Bad Wolf Surge Protector is built to hand surge currents up to 200,000 Amps (200kA).

  Component and Enclosure Certifications

  UL 1449 CSA C22.2 No. 269-5 E320116

  IEC61051-1, IEC 61051-2, IEC61051-2-2 Annex Q of IEC 60950-1 Annex G of IEC 62368-1 J50519458

  GB/T 10193 GB/T 10194 GB 4943.1 GB 8898 CQC21001319760

  UL94V-0 Flammability rated

  IP67

  UL508A

• Compliance

  UL 1449

  Connection Type

  Hardwire

  Form Factor

  Surface Mount

  Product Dimensions

  6"x3.25"x2.25"

  Product Weight

  19oz

  Service Type

  Split Phase

  SPD Classification

  Type 1, Type 2

  Surge Current Rating (A)

  200kA

  Type of Surge Protection

  AC

  Voltage (Vac)

  240
